APLEX4

Category:

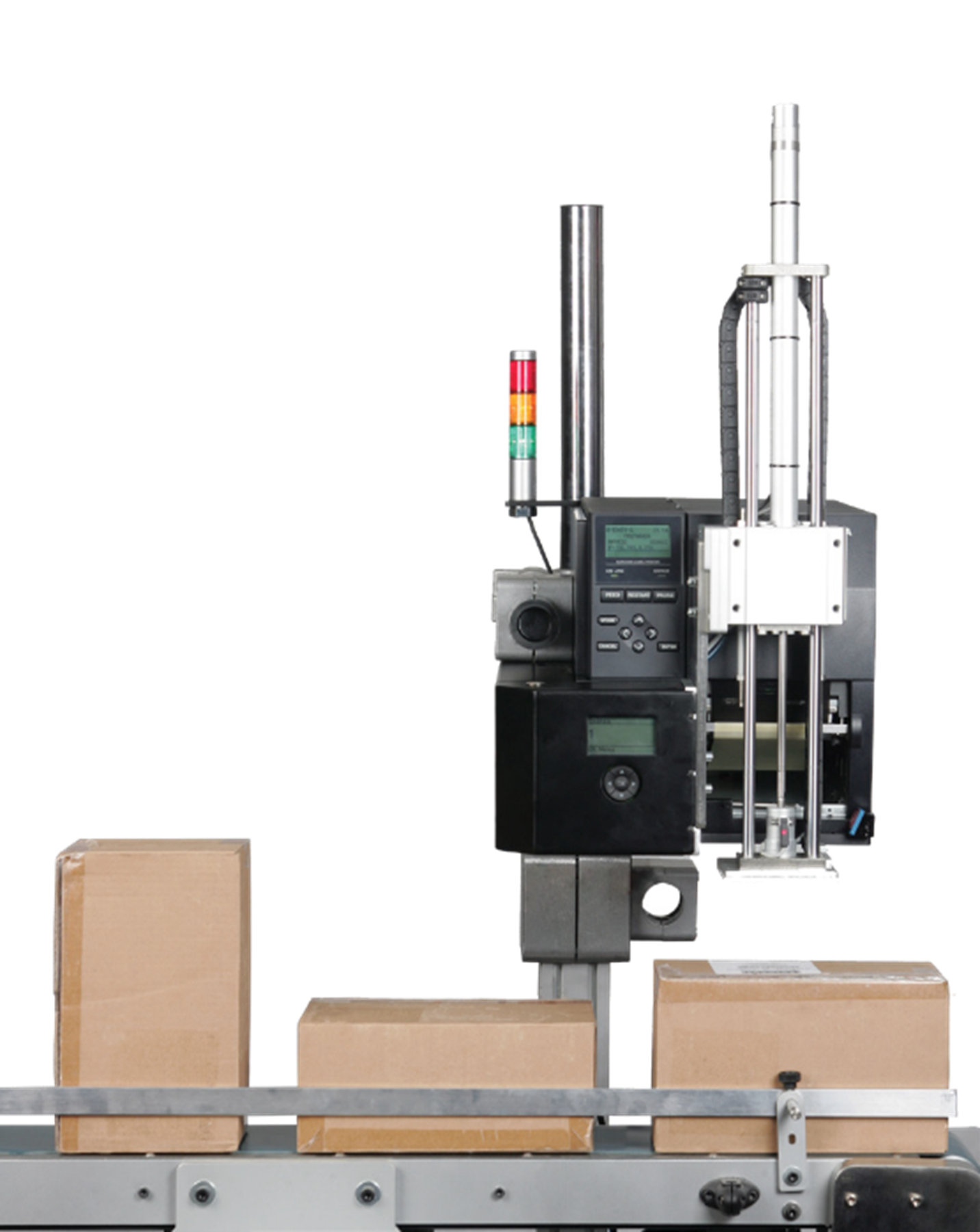

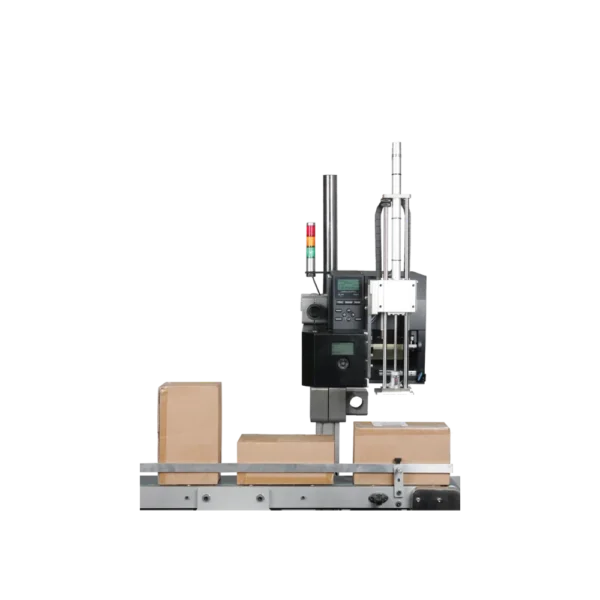

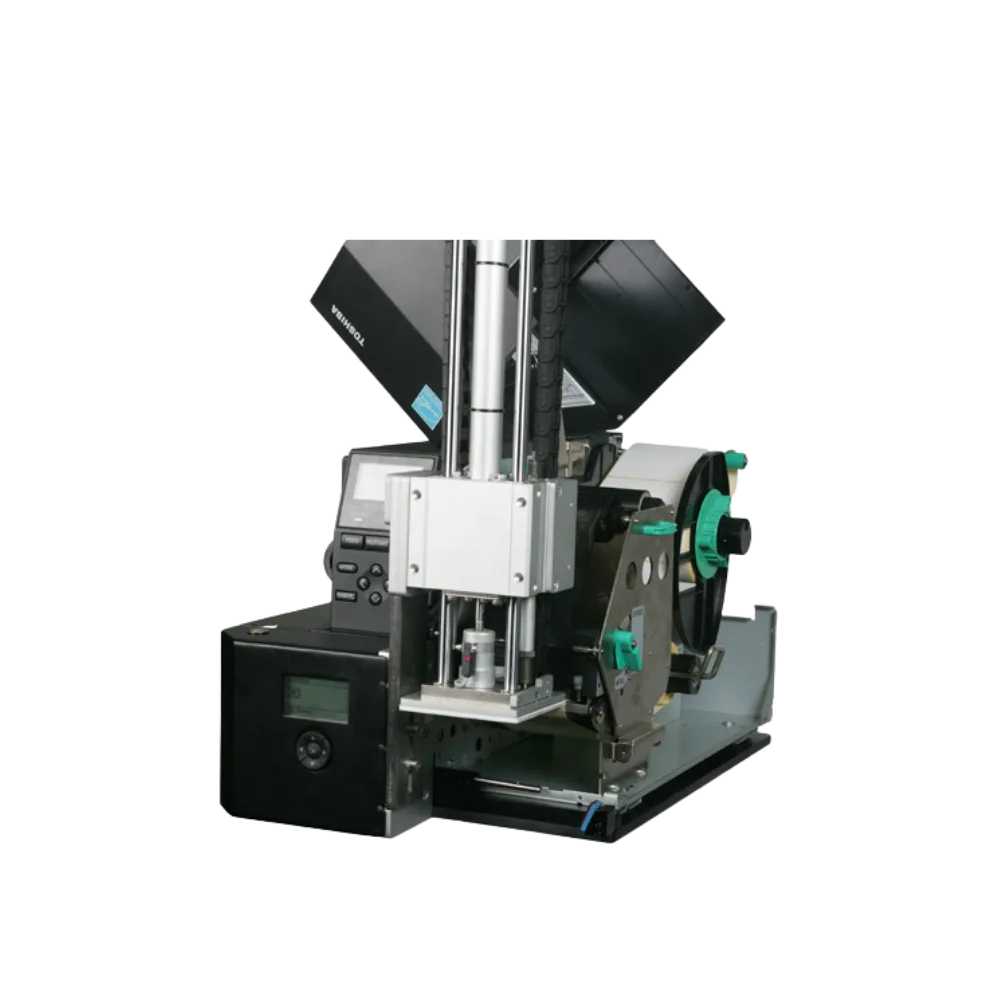

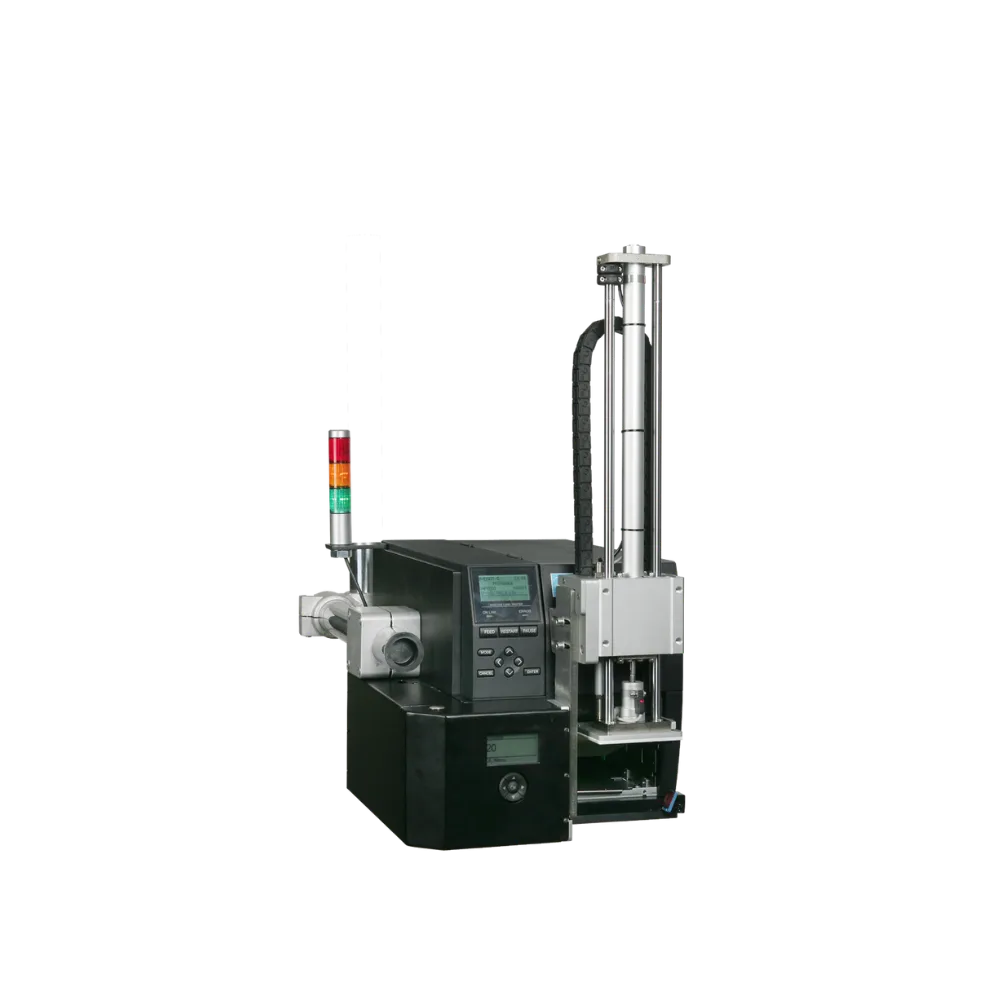

Aplex4, a print and apply system, is a high-performance industrial label printing applicator which offers the most reliable print solutions that meets your labelling operation requirements. Aplex4 serves as an optional supplementary product to the Toshiba B-EX4 series industrial barcode printers.

With the merge of Toshiba B-EX4 series industrial barcode printers and Aplex4,  they provide a robust all-in-one automated printing and cost-effective solution that meet your evolving workplace needs.

Add to Enquire List

Description

  • A cost effective with ready-to-go solution enables in-line operation and increases the efficiency of your production workflows.
  • Application flexibility with setup of labels from the top, bottom or sides and at any rotation angle required.

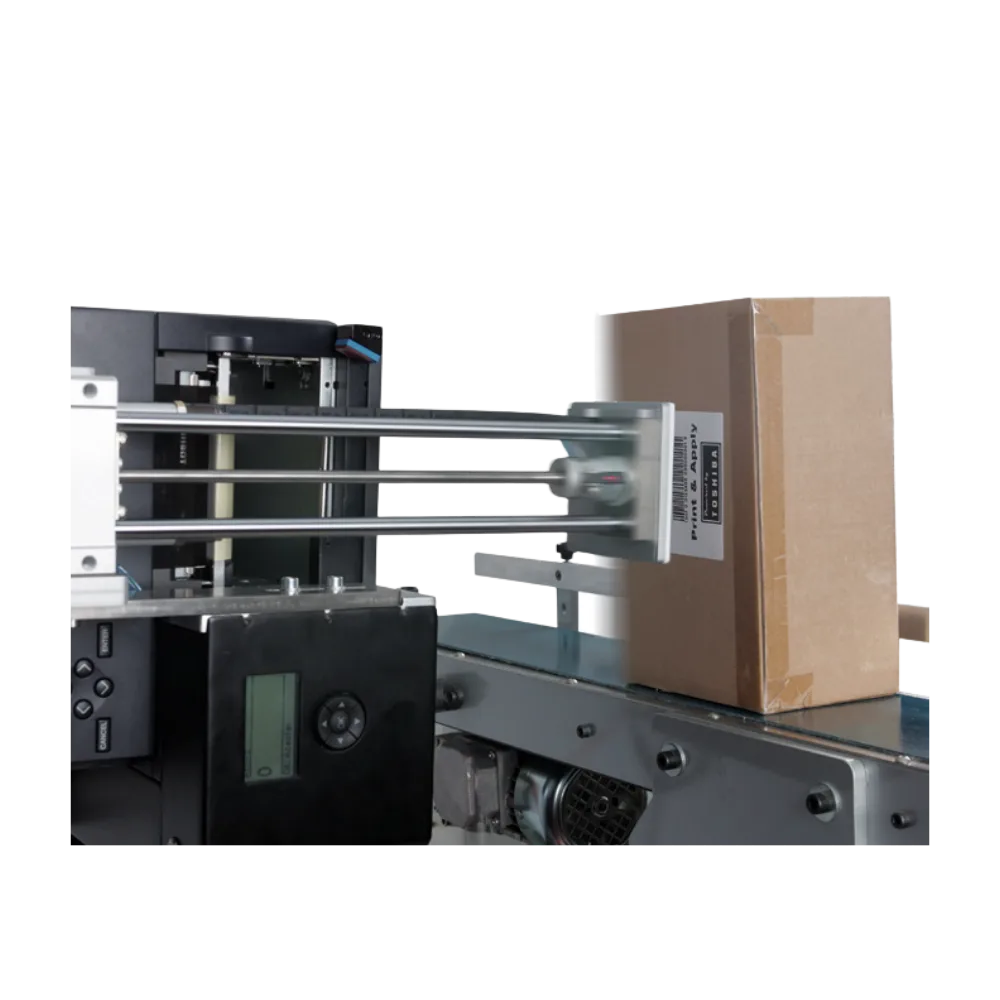

  • Comes with automatic labelling in motion application. 1” Piston has auto-sensing that can label at different heights and has adjustable speed.
  • A secured system that is designed for safe operation.
  • User-Friendly with easy installation and configuration.

Additional information

Application Method

Direct tamp, tamp blow (stationary or moving carton)
Piston Stroke Applicator

max. 400 (usable 250 mm), Auto height detection – Package flexibility (variable height carton/product)
Working Modes

Print & apply, print & wait up/down & apply
Air Pressure

4 – 6 bars / 8 mm tube diameter, includes internal air filter
In/Out Signal

Print / apply / inhibition / test button, Ready/ error (status light) / working
Secondary Signals

Perimeter / presence of hand
Fixing System

50 mm tube diameter
Dimension

365(W) x 585(D) x 705(H) mm
